ESP32-C3 DevKit with 500mA LDO, Ideal Diode and External Crystal
Role: Hardware designer & PCB engineer
- PCB Design
- ESP32
- RF Design
- KiCad
- Circuit Design

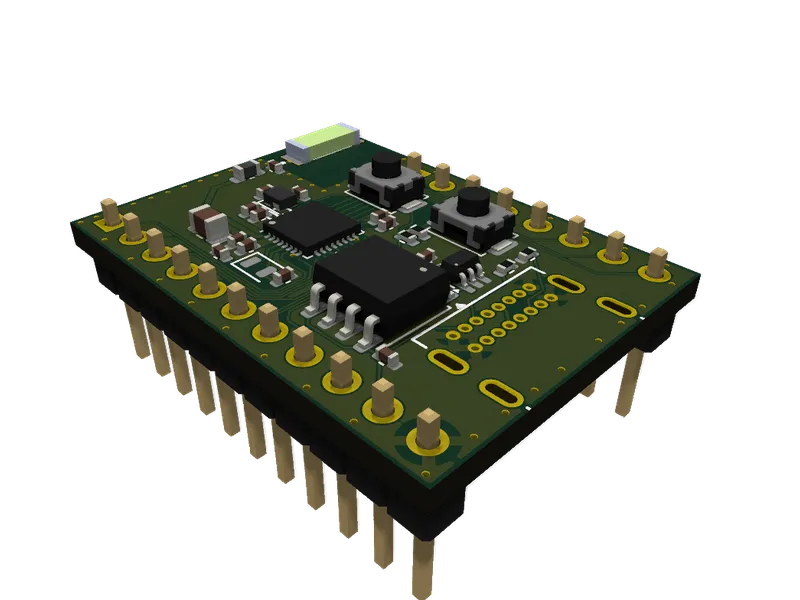

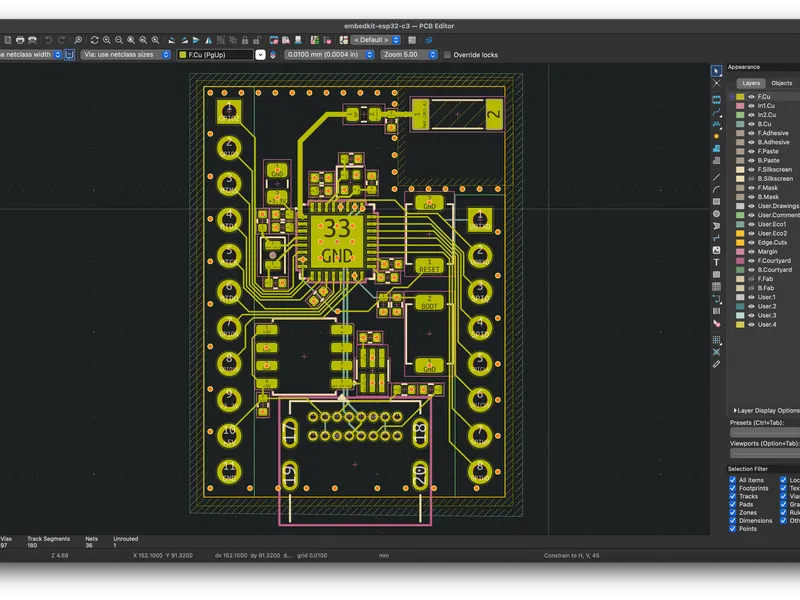

Compact ESP32-C3 development board built around specific requirements: external crystal for accurate timekeeping, 500mA LDO for stable full-load operation, and an ideal diode to allow direct 3.3V board power without backfeeding through the regulator.
THT pins throughout for breadboard and custom PCB integration. USB-C, chip antenna, standard layout.
