RP2350 Dual LED Ring (72× SK6812)
Role: Hardware designer & PCB engineer
- PCB Design
- RP2350
- KiCad
- Power Electronics

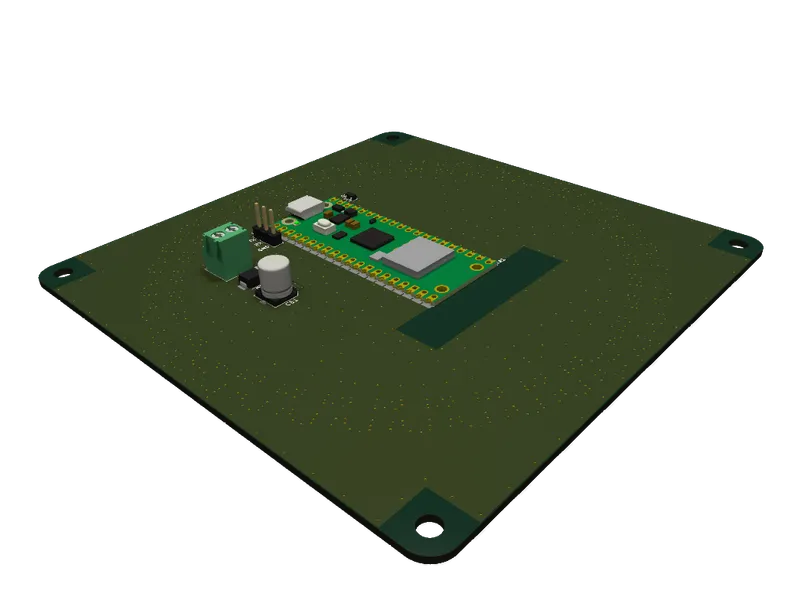

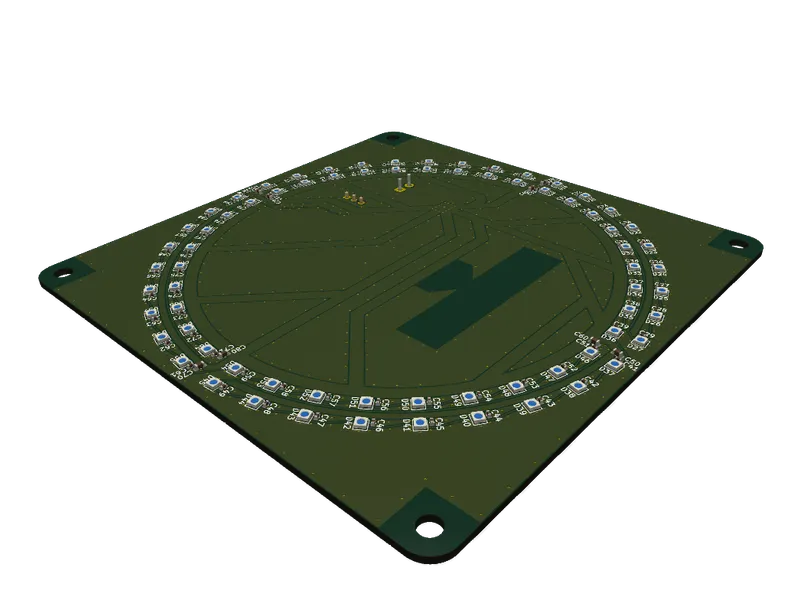

Two-layer circular board with 72× SK6812-EC20 addressable LEDs arranged in dual concentric rings. Raspberry Pi Pico 2 W mounted on the back. MOSFET-based power path, USB-C input with TVS protection.

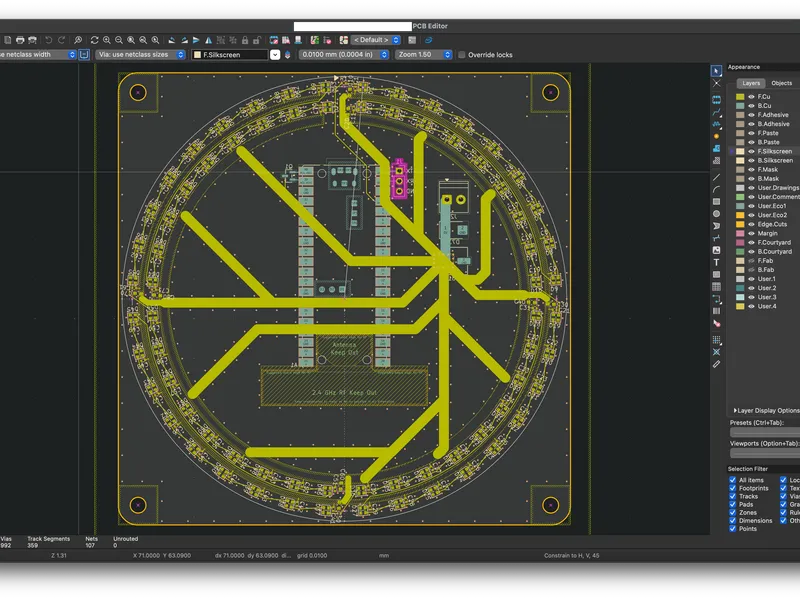

LED traces routed along the ring geometry to keep high-current paths short and symmetric across both rings.
